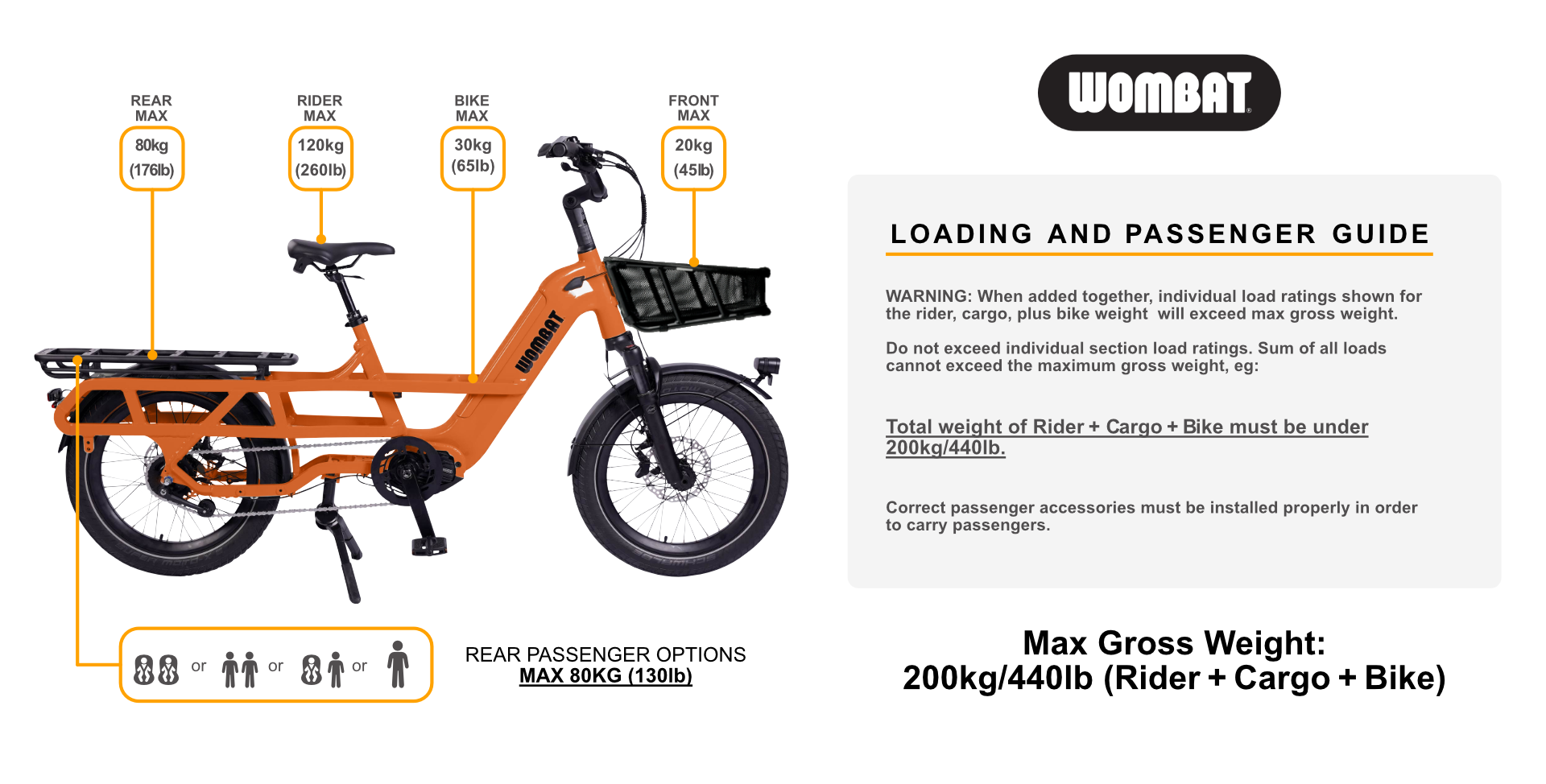

How to safely carry your cargo, please read carefully.
Follow the loading guidelines for your selected bike model below.
Note that the Maximum gross weight limitation may restrict individual loading configurations. Do not exceed individual section load ratings. When added together, individual ratings shown for the rider, cargo and bike weight will exceed max gross weight.

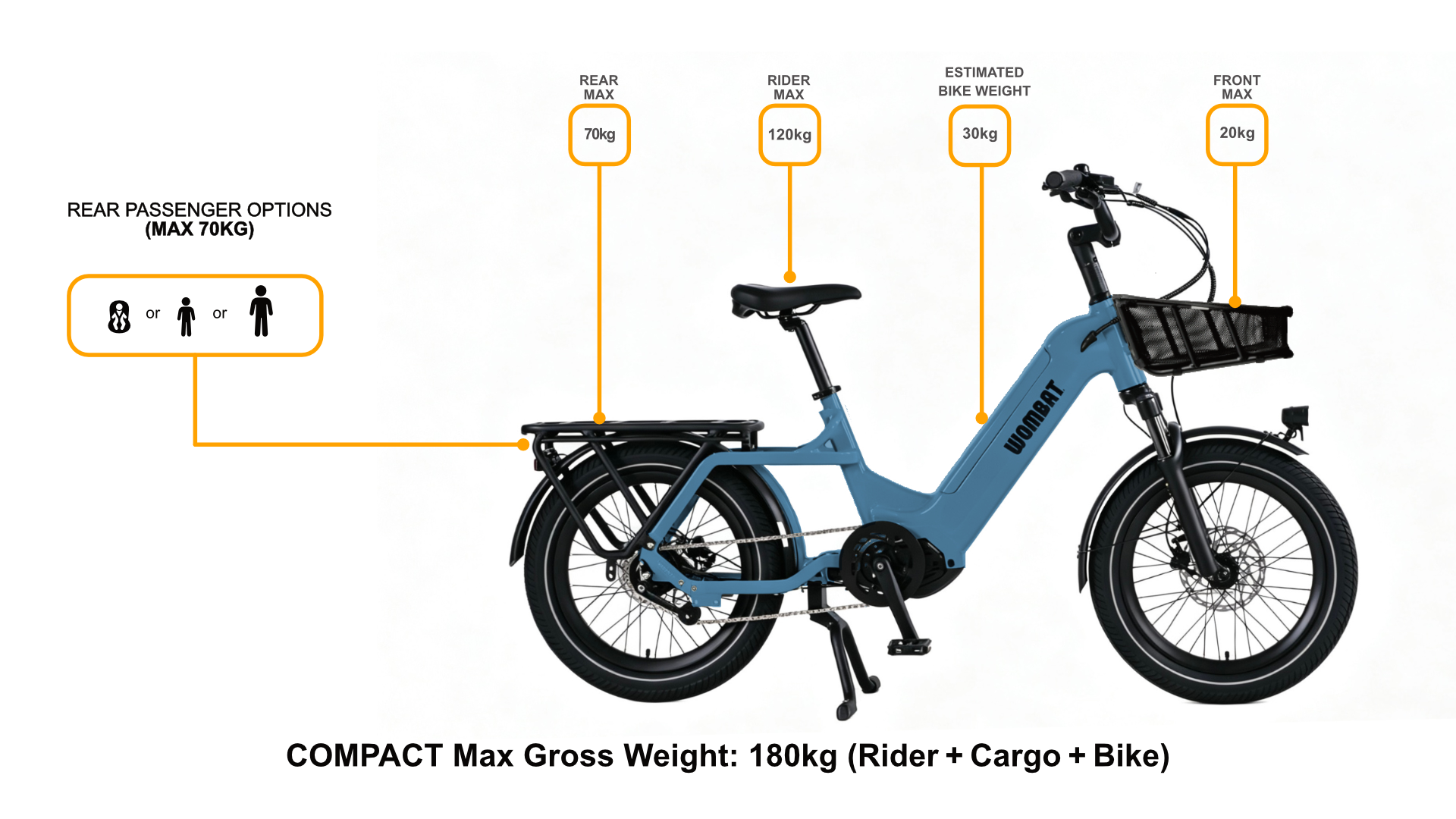

Compact SUV

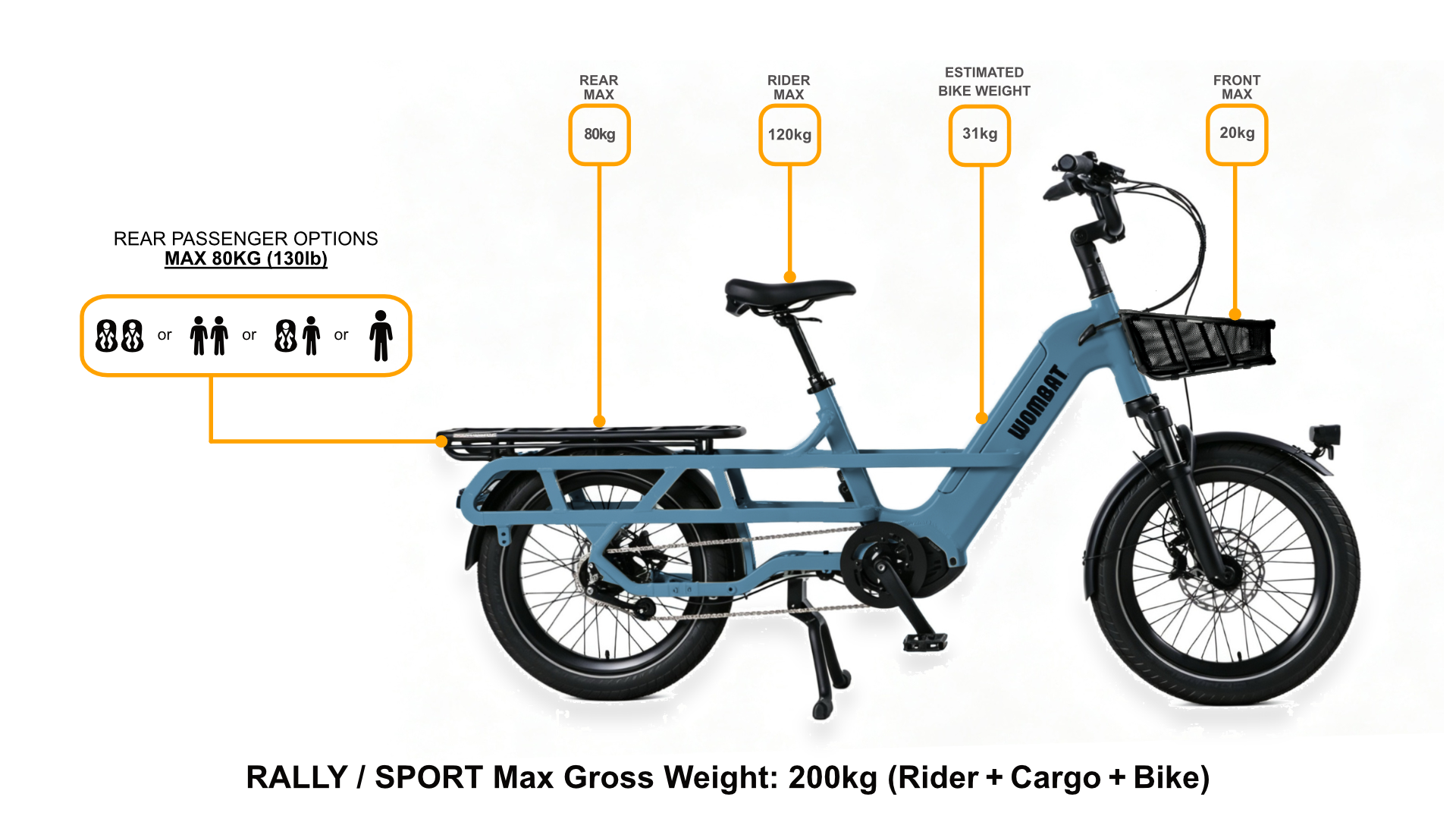

Rally and Sport

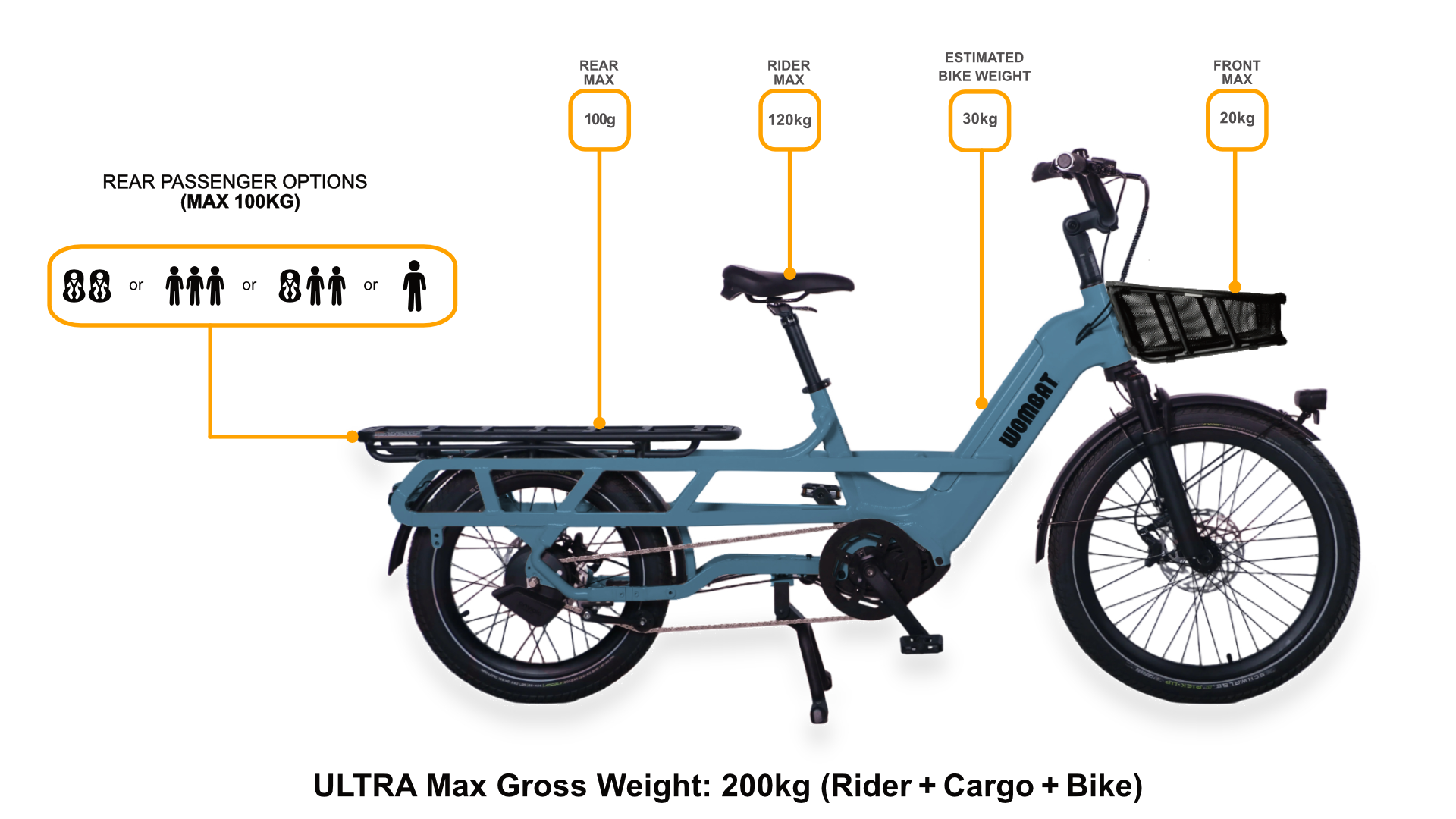

Ultra
Understanding wheel Sizes.
Our smaller 20" wheels create an overall lower centre of gravity and standover height on your bike - this is great for increasing rider confidence and control as the cargo or kids are closer to the ground, making it easier to manage.
The larger full-size 24" wheels give a bigger rolling circumference, which is great for riding fast, hitting bumps and generally more heavy riding. We also keep the rear rack here as low to the ground as possible, with the very minimum clearance above the wheel.
And yes, the Ultra has a large on the front and small on the rear - its the best of both worlds!

20"

24"
Designed with the rider in mind
Learn more about our bikes and geometry to find your perfect ride.

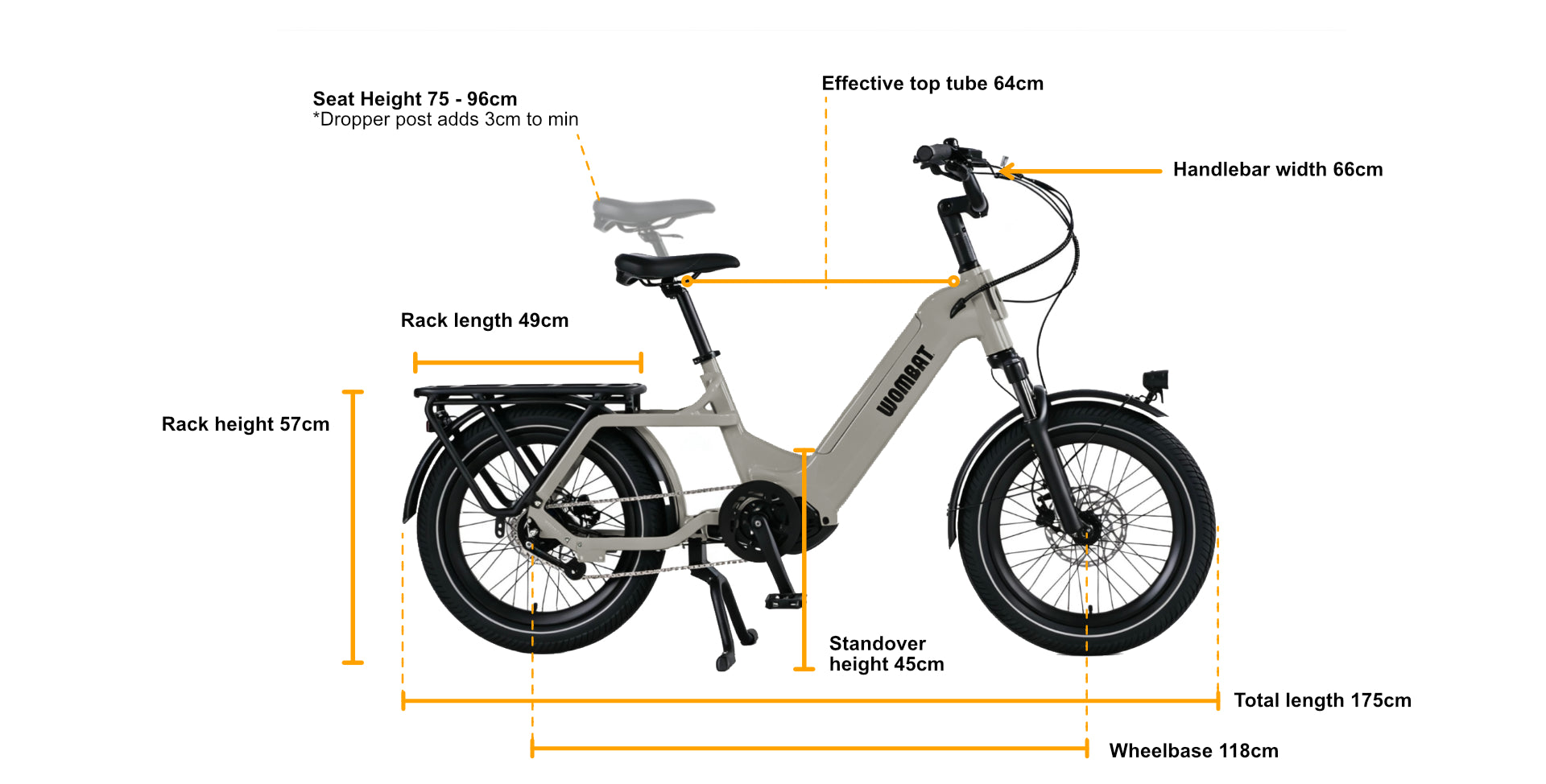

Compact SUV
Bike weight (without accessories) = 29Kg
670wh Battery = 3.4kg

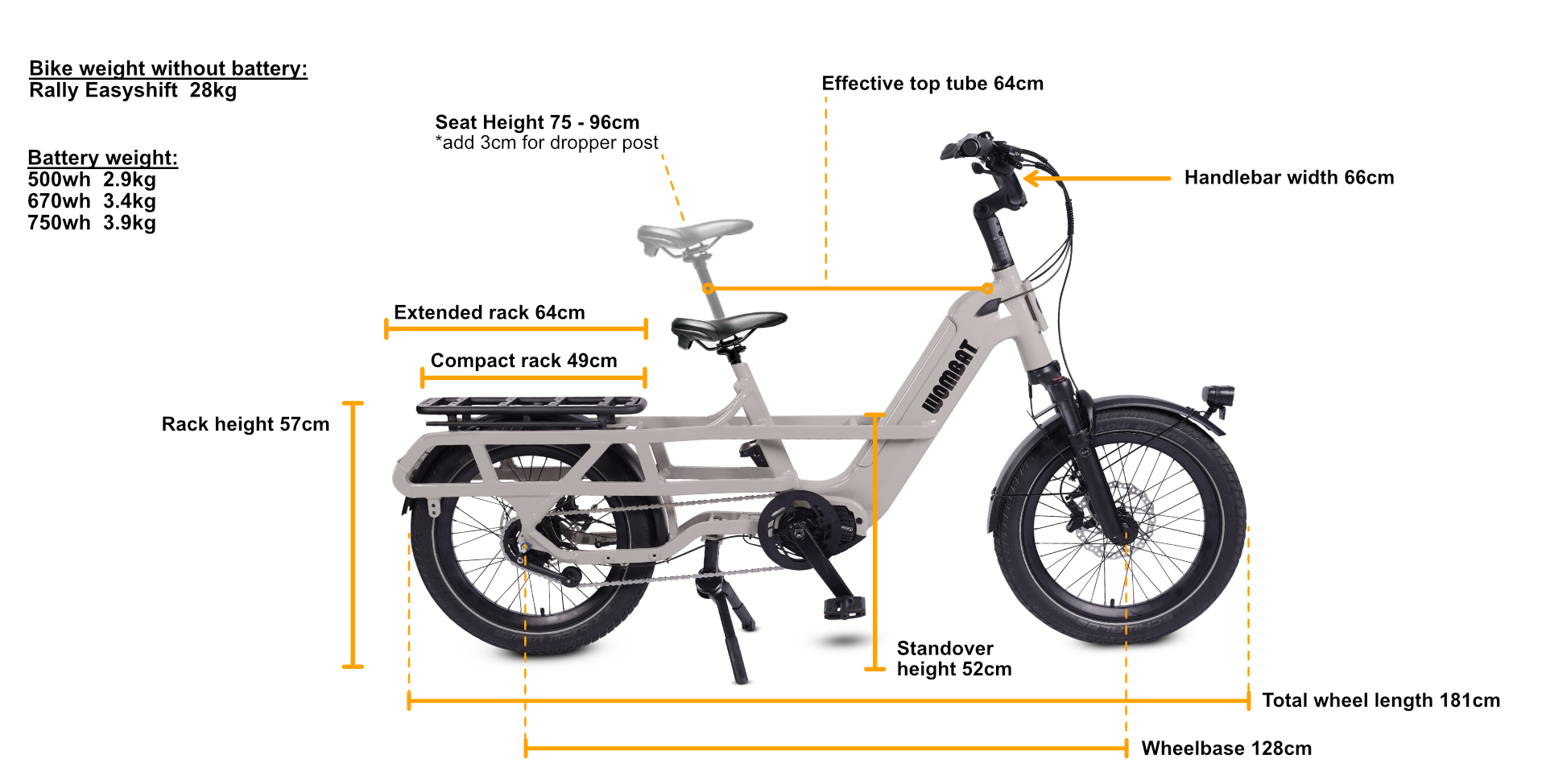

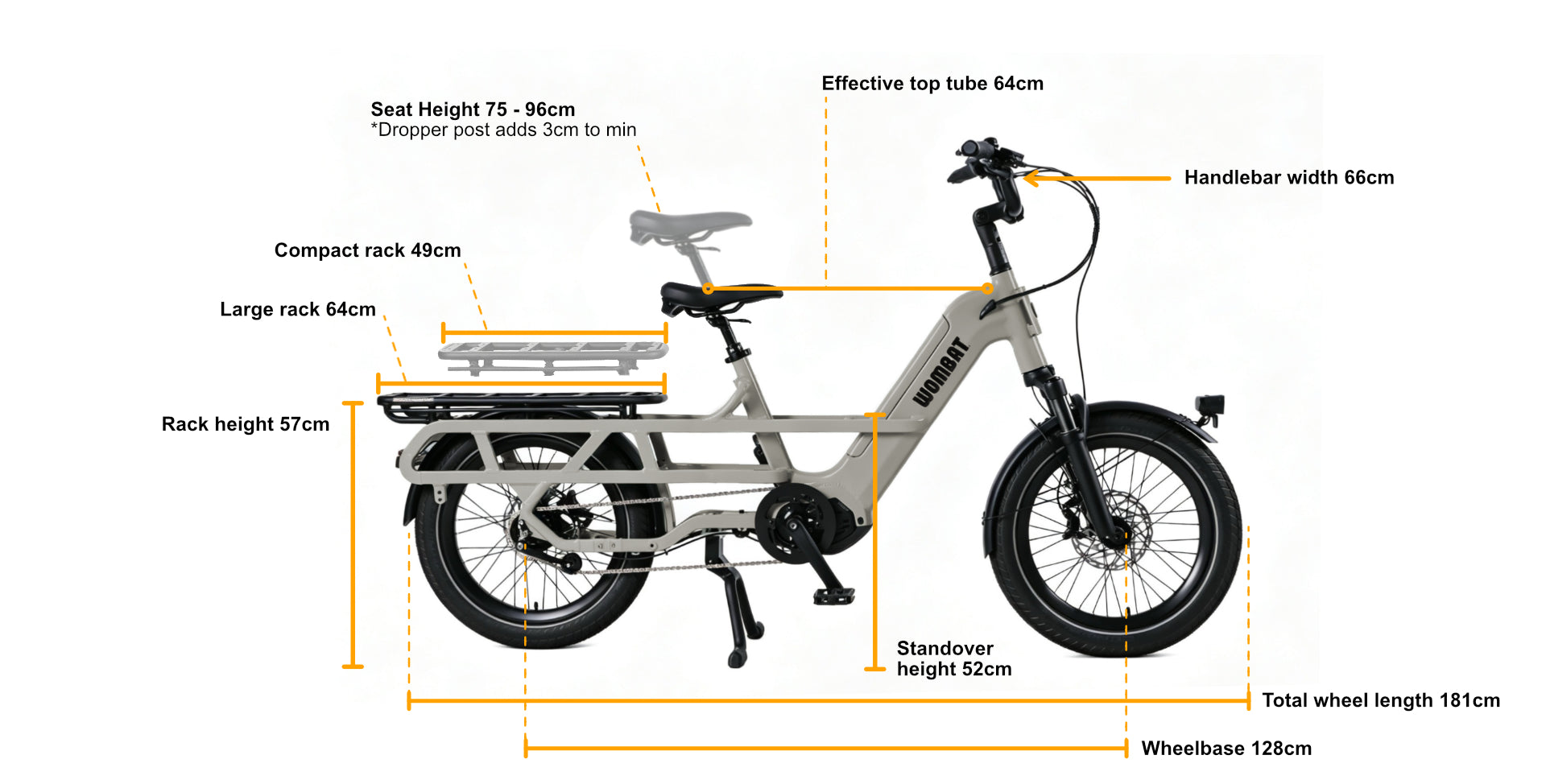

Rally
Bike weight (without accessories) = 29Kg
670wh Battery = 3.4kg

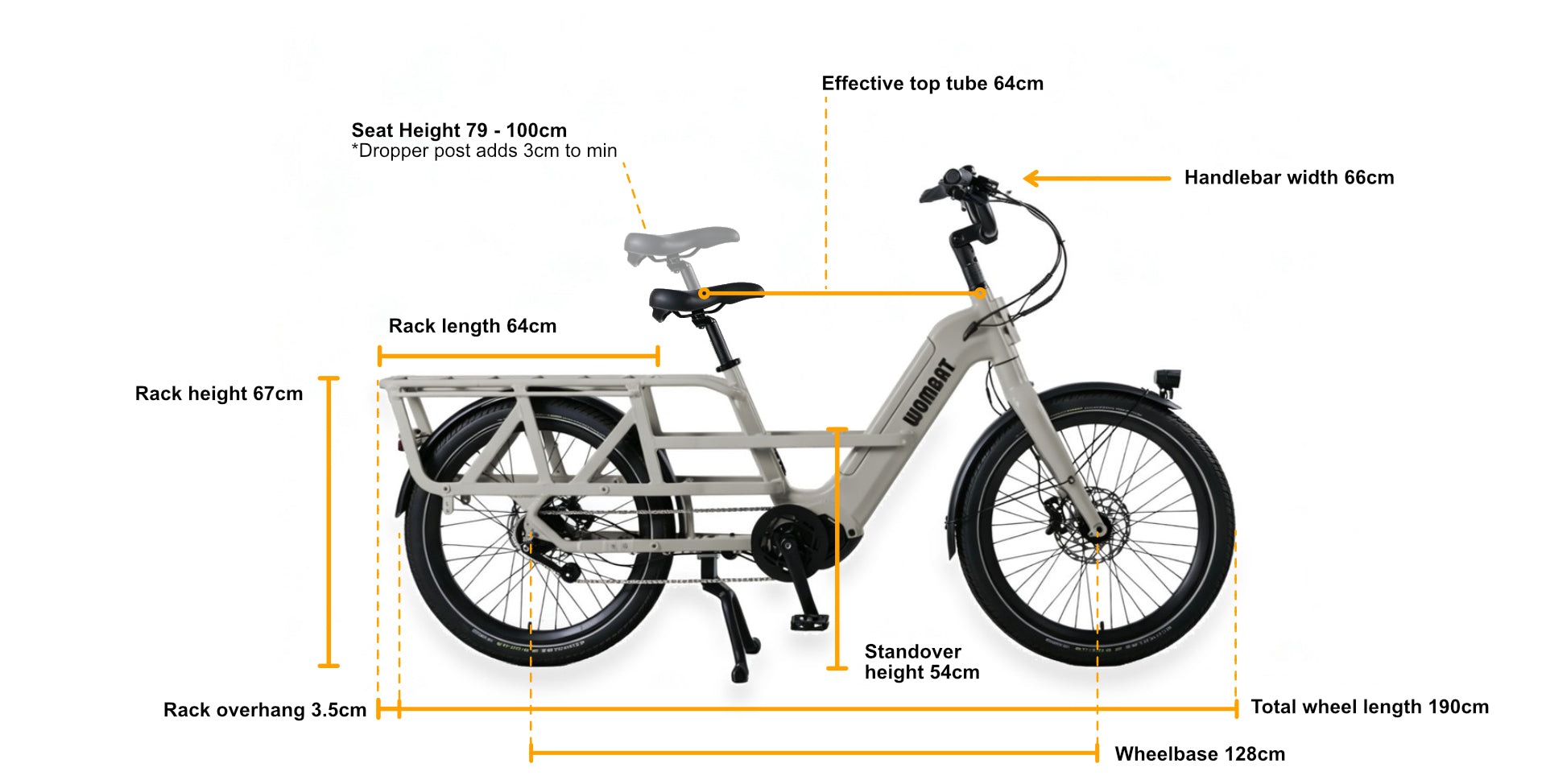

Sport
Bike weight (without accessories) = 28Kg
670wh Battery = 3.4kg
Adding a suspension fork = additional 1.5Kg

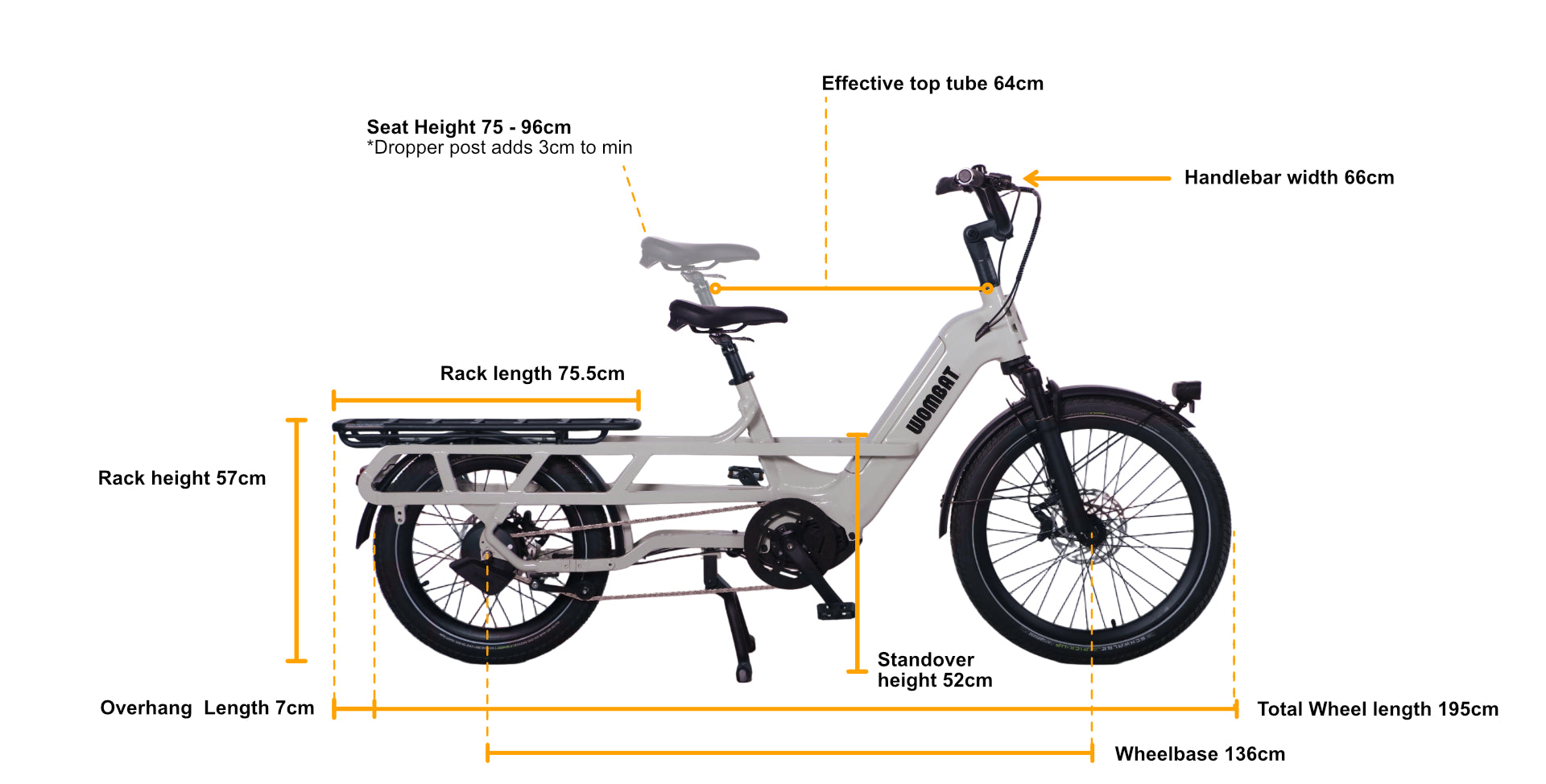

Ultra
Bike weight (without accessories) = 30Kg
670wh Battery = 3.4kg
Quick comparison table
Take a looks at the some of the key differences that make each of our full size cargo bikes bikes unique.
20"
24"
24" Front / 20" Rear
Manual, 5 Speed Internal Hub
Manual, 5 Speed Internal Hub
Automatic Shifting CVT Hub
1 - 2
1 - 2
1 - 3
181cm
193cm
202cm
M430 (120nm / 250w)
M430 (120nm / 250w)
M430 (120nm / 250w)
